Condição de UN3F: novo em embalagem antiestática

Model


SH-2000




Operation Range


2400-2500 MHz




Operation Mode


Bi-directional, half-duplex ,time division duplex senses RF, carrier from transmitter and Auto-Switching via carrier sensing




Input power


0~20dBm(when the power more than 20dBm, the bandwidth will reduced correspondently. We have upgraded the chip, and it can receive input power no more than 26dBm,so please feel free to use it




Transmit gain


13~16dB




Output power


2000mW(33dBm)




Receiver gain


-12dBm




Noise figure


3.5dB




Frequency response


±1dB over operating range




Power adapter


6V/2A DC 100~240V for AC adapter




Operation temp.


-20- ~ +70-




Operation humidity


Up to 75% relative humidity




Material


 aluminum alloy




LED


Transmit active(green),power(red)




Booster(cm)


9.1*5.6*2.3cm(L*W*H)




Itens inclusos:

1 x Booster
1 x Power Plug(us plug)
1 x SMA Cable
1 x 5 dBi Antenna
1 x User Manual

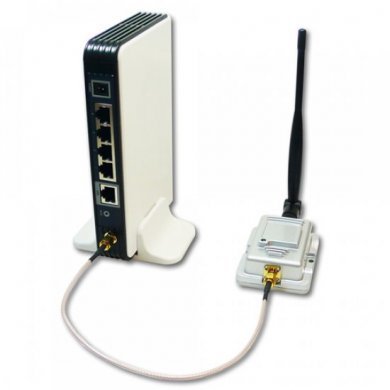

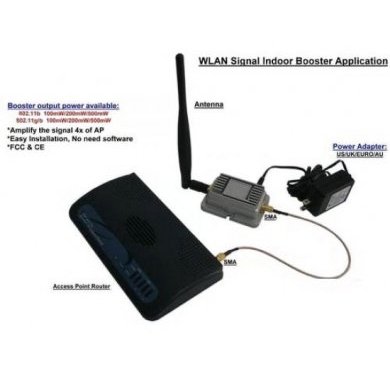

UN3F SH-2000 Booter Wi-Fi 2W 2.4Ghz

Condição de UN3F: novo em embalagem antiestática
