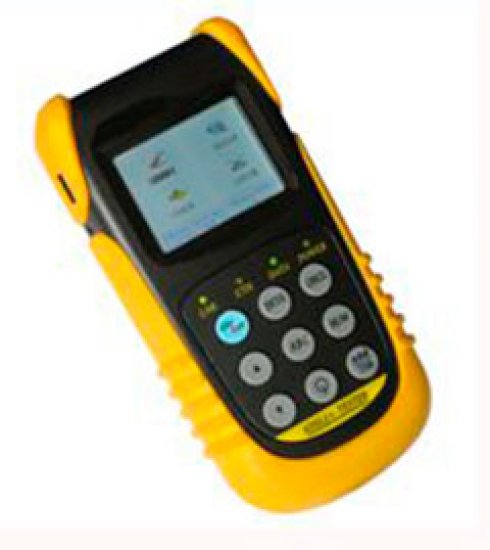

O FS801C é um portátil testador avançado de telecomunicações que é utilizado para a instalação, manutenção e medição de linhas ADSL e ADSL2 +. Ele suporta a função de teste como parâmetro, Erro, DMM, PING relacionados com a ADSL2 + serviço, autenticação de usuário, cadastro no ADSL2 + lado do usuário da linha.
Permite que diretamente os engenheiros e técnicos possam diagnosticar e avaliar o serviço ADSL2 +. É a ferramenta certa para o trabalho em campo.
Features:
1. Comply with multi-standards: ITU-T G.992.1 (G.DMT), ITU-T G.992.2 (G.Lite), ADSL2（G.992.3）, ADSL2+(G.992.5）
2. Automatically fit for the ADSL line standards, real-time display ADSL line connection status
3. Support both WAN PING and LAN PING
4. Support replacing MODEM and simulating the whole process of login on Internet
5. High resolution backlight large LCD, Handheld design and easy-to-use
6. Built-in Li rechargeable battery and smart charger circuit.
7. High storages capacity, can store up to 70 groups of test results including settings and results information.
8. Various Voice alarm and LED indications
9. Upgradeable software via an integrated RS-232 interface
10. Test results uploaded, conserved and printed by PCManager Software
Specifications:
1. Basic
Line standard
Frame structure
Line connection
2. Parameter
Fast Bit Rates (FAST): Upstream and Downstream
Interleaved Bit Rate (INTL): Upstream and Downstream
Max Bit Rate: Upstream and Downstream
Utilize Rate: Upstream and Downstream
Transmit Power: Upstream and Downstream
Line Attenuation: Upstream and Downstream
SNR Margin (Signal to Noise Ratio) : Upstream and Downstream
3. Link (Near and Far)
Loss of Power (LOP)
Loss of Signal (LOS)
Severe Error Frame (SEF)
Reed-Solomon Forward Error Corrections (FEC) INTL
Reed-Solomon Forward Error Corrections (FEC) FAST
Cyclic Redundancy Check (CRC) anomalies INTL
Cyclic Redundancy Check (CRC) anomalies FAST
No Cell Delineation (NCD) INTL
No Cell Delineation (NCD) FAST
Header Error Check (HEC) INTL
Header Error Check (HEC) FAST
Out of Cell Delineation (OCD) INTL
Out of Cell Delineation (OCD) FAST
Sever Error Second (SES)
Error Second (ES),
Bit Error (BE)
4. Alarm
Downstream Transmit Speed Threshold
Downstream SNR Margin Threshold
Downstream Channel Threshold
Downstream Line Attenuation Threshold
Upstream Line Attenuation Threshold
5. DMT
SNR and Character bits allocation (graphic format) under 256/512 DMT
6. PING testing
WAN PING testing: IP or domain ping testing, statistic Percentage of PING packet loss
LAN PING testing: IP PING testing, Find out the faultily connected PC and statistic Percentage of PING packet loss
7. DMM
AC, DC voltage
Loop feeding current
Round resistance
Line capacitance
Line insulation capacitance
Estimate line distance

FS801C Fiber OptSt Teste e Diagnóstico Linhas ADSL e ADSL2

Condição de FS801C: novo em embalagem comercial
