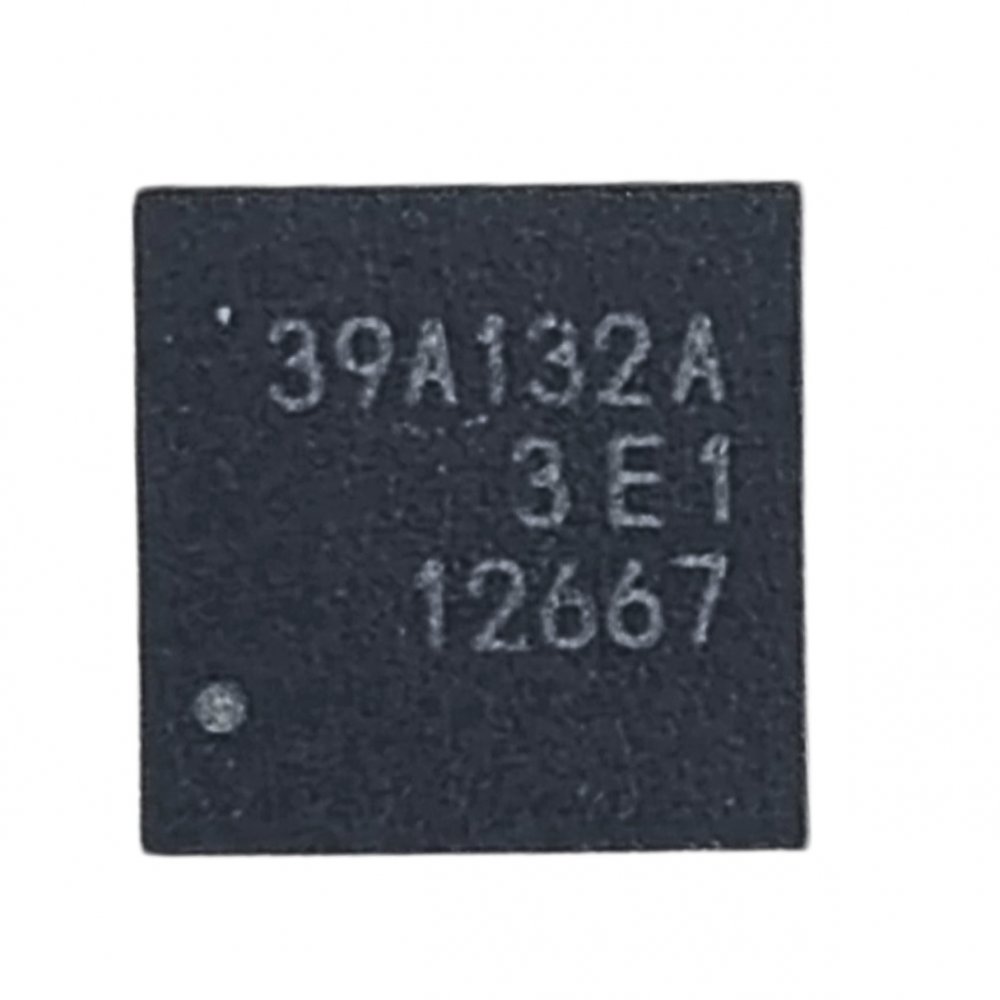

39A132A

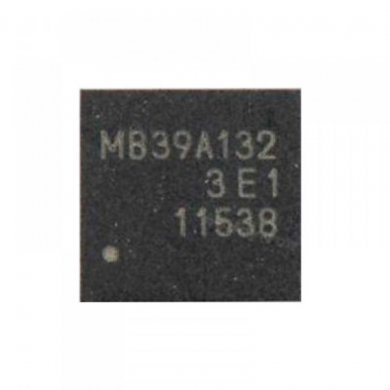

Ci MB39A132 Synchronous Rectification DC/DC Qfn-32

Ci MB39A132 Synchronous Rectification DC/DC Qfn-32

*Imagens ilustrativas

39A132A

Ci MB39A132 Synchronous Rectification DC/DC Qfn-32

Condição:

novo em embalagem comercial

Garantia:

3 meses direto com a Net Computadores

NCM:

85423190

em estoque, envio imediato

Site
Loja Física

R$ 7,50

À vista já com 5% de desconto (boleto/pix). Preço base SP. Informaremos caso incidam impostos interestaduais.

ou no cartão de crédito por R$ 7,89

Condição exclusiva para o site. Parcelas serão exibidas na tela de pagamento.

R$ 7,50

À vista já com 10% de desconto (boleto/pix). Preço base SP. Informaremos caso incidam impostos interestaduais.

ou R$ 8,33 no cartão de crédito em até 10x sem juros

Condição exclusiva para compras presenciais na loja física.

Adicionar ao carrinho

Comprar agora

R$ 7,50

à vista no pix

Comprar

Condição: novo em embalagem comercial

Garantia: 3 meses direto com a Net Computadores

NCM: 85423190

cotar mais de 1 peça de 39A132A
indicar a um amigo 39A132A

Net Computadores

desde 1998, atua como revenda de equipamentos para informática com foco em hardware para TI empresarial.

saiba mais

39A132A Ci MB39A132 Synchronous Rectification DC/DC Qfn-32

Condição de 39A132A: novo em embalagem comercial

Outros Part Numbers para este componente: MB39A132

SYNCHRONOUS RECTIFICATION DC/DC CONVERTER IC FOR CHARGING LI-ION BATTERY INTEGRATED CIRCUITS CIRCUITO INTEGRADO IC SMT

DESCRIPTION
MB39A132, which is used for charging Li-ion battery, is a synchronous rectification DC/DC converter IC adopting pulse width modification (PWM). It can control charge voltage and charge current separately and supports the N-ch MOS driver. In addition, MB39A132 is suitable for down-conversion. MB39A132 has an AC adapter detection comparator, which is independent of the DC/DC converter control block, and can control the source supplying voltage to the system. MB39A132 supports a wide input voltage range, enables low current consumption in standby mode, and can control the charge voltage and charge current with high precision, which is perfect for the built-in Li-ion battery charger used in devices such as notebook PC.

FEATURES
Supports 2/3/4-Cell battery pack
Two built-in constant current control loops
Built-in AC adapter detection (ACOK pin)
Charge voltage setting accuracy: 0.5% (Ta 25 C to 85 C)
Charge voltage control setting can be selected without using any external resistor. (4.00 V/Cell, 4.20 V/ Cell, 4.35 V/Cell) Output voltage can also be freely set by using the external resistor.
Two built-in high-precision current detection amplifiers :Input offset voltage: 3 mV :Detection accuracy: 1 mV ( INC1, INC2 3 V to VCC)
Charge current control setting can be selected without using any external resistor. (RS 20 m: 2.85 A) Charge current can also be freely set by using the external resistor.
Switching frequency can be set by using the external resistor (MB39A132 has a built-in frequency setting capacitor.):100 kHz to 2 MHz
Built-in off time control In standby mode (Icc 6 A Typ), only the AC adapter detection is in operation.

APPLICATIONS
Internal charger used in notebook PC
Handy terminal device

39A132A Ci MB39A132 Synchronous Rectification DC/DC Qfn-32

Maiores detalhes de 39A132A no site do fabricante:
https://www.recomb-omsk.ru/published/SC/html/scripts/doc/MB39A132.pdf

Condição de 39A132A: novo em embalagem comercial

Tags de 39A132A: MB39A132, 39A132, MB39A132A, 39A132A,, Fujitsu
