25Q128JVSQ-KIT5

CI DE BIOS 128MBIT FLASH 3.3V SOIC8 (Kit 5 und)

3V 128M-BIT SERIAL FLASH MEMORY WITH DUAL/QUAD SPI

25Q128JVSQ-KIT5 - Winbond Electronics Corp.

25Q128JVSQ-KIT5 CI DE BIOS 128MBIT FLASH 3.3V SOIC8 (Kit 5 und)

CI DE BIOS 128MBIT FLASH 3.3V SOIC8 (Kit 5 und)

*Imagens ilustrativas

25Q128JVSQ-KIT5

CI DE BIOS 128MBIT FLASH 3.3V SOIC8 (Kit 5 und)

3V 128M-BIT SERIAL FLASH MEMORY WITH DUAL/QUAD SPI

Condição:

novo em embalagem comercial

Garantia:

7 dias troca. Sem garantia após soldado

NCM:

85423190

em estoque, envio imediato

Site
Loja Física

R$ 56,50

À vista já com 5% de desconto (boleto/pix). Preço base SP. Informaremos caso incidam impostos interestaduais.

ou no cartão de crédito por R$ 59,47

Condição exclusiva para o site. Parcelas serão exibidas na tela de pagamento.

R$ 56,50

À vista já com 10% de desconto (boleto/pix). Preço base SP. Informaremos caso incidam impostos interestaduais.

ou R$ 62,78 no cartão de crédito em até 10x sem juros

Condição exclusiva para compras presenciais na loja física.

Adicionar ao carrinho

Comprar agora

R$ 56,50

à vista no pix

Comprar

Condição: novo em embalagem comercial

Garantia: 0 meses direto com a Net Computadores

NCM: 85423190

cotar mais de 1 peça de 25Q128JVSQ-KIT5
indicar a um amigo 25Q128JVSQ-KIT5

Net Computadores

desde 1998, atua como revenda de equipamentos para informática com foco em hardware para TI empresarial.

saiba mais

25Q128JVSQ-KIT5 CI DE BIOS 128MBIT FLASH 3.3V SOIC8 (Kit 5 und)

Condição de 25Q128JVSQ-KIT5: novo em embalagem comercial

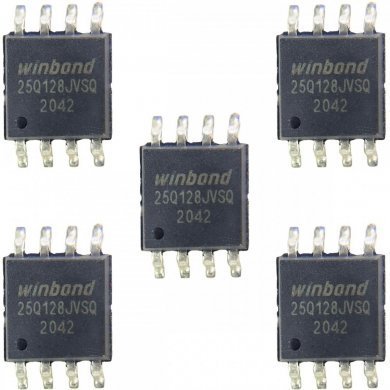

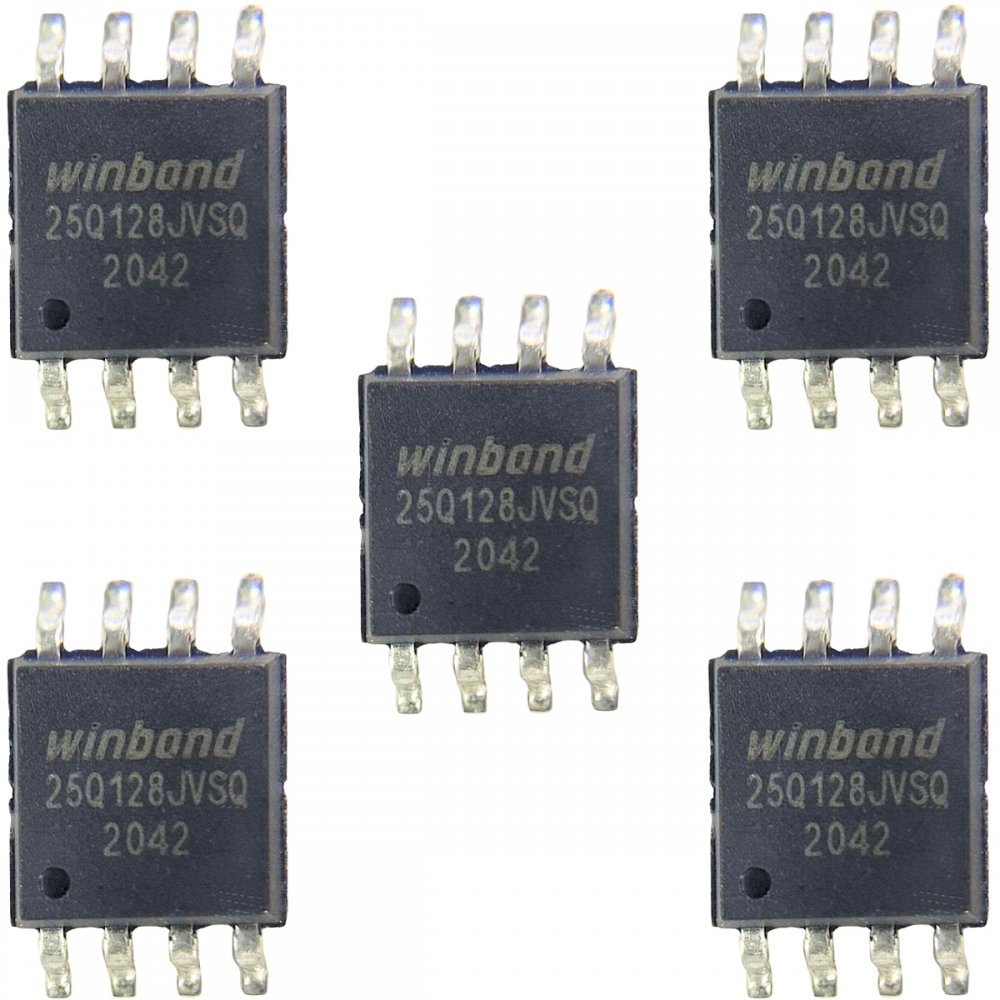

KIT com 5 unidades
Novo sem uso

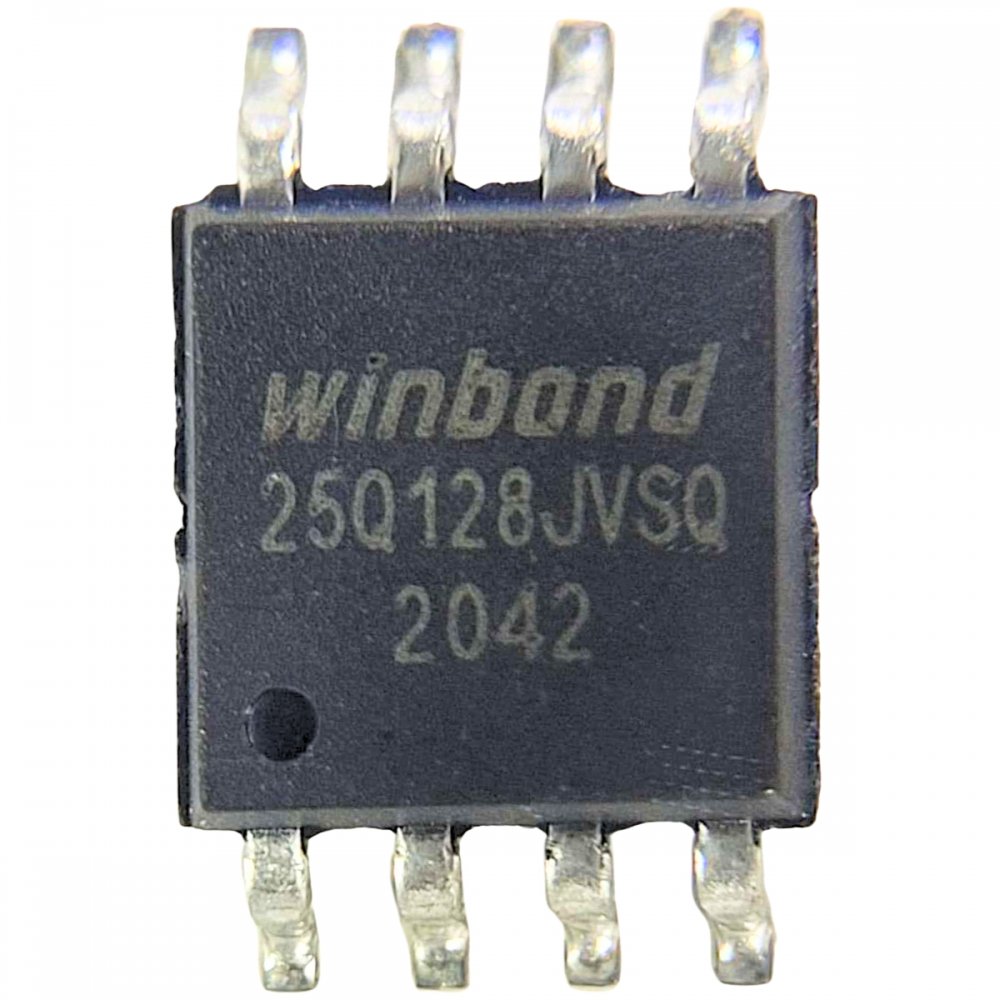

Original Winbond

The W25Q128JV (128Mbit) Serial Flash memory provides a storage solution for systems with limited space, pins and power. The 25Q series offers flexibility and performance well beyond ordinary Serial Flash devices. They are ideal for code shadowing to RAM, executing code directly from Dual/Quad SPI (XIP) and storing voice, text and data. The device operates on a single 2.7V to 3.6V power supply with current consumption as low as 1A for powerdown. All devices are offered in spacesaving packages.

The W25Q128JV array is organized into 65,536 programmable pages of 256bytes each. Up to 256 bytes can be programmed at a time. Pages can be erased in groups of 16 (4KB sector erase), groups of 128 (32KB block erase), groups of 256 (64KB block erase) or the entire chip (chip erase). The W25Q128JV has 4,096 erasable sectors and 256 erasable blocks respectively. The small 4KB sectors allow for greater flexibility in applications that require data and parameter storage. (See Figure 2.)

The W25Q128JV supports the standard Serial Peripheral Interface (SPI), Dual/Quad I/O SPI: Serial Clock, Chip Select, Serial Data I/O0 (DI), I/O1 (DO), I/O2 and I/O3. SPI clock frequencies of W25Q128JV of up to 133MHz are supported allowing equivalent clock rates of 266MHz (133MHz x 2) for Dual I/O and 532MHz (133MHz x 4) for Quad I/O when using the Fast Read Dual/Quad I/O. These transfer rates can outperform standard Asynchronous 8 and 16bit Parallel Flash memories.

Additionally, the device supports JEDEC standard manufacturer and device ID and SFDP, and a 64bit Unique Serial Number and three 256bytes Security Registers.

FEATURES
New Family of SpiFlash Memories
W25Q128JV: 128Mbit / 16Mbyte

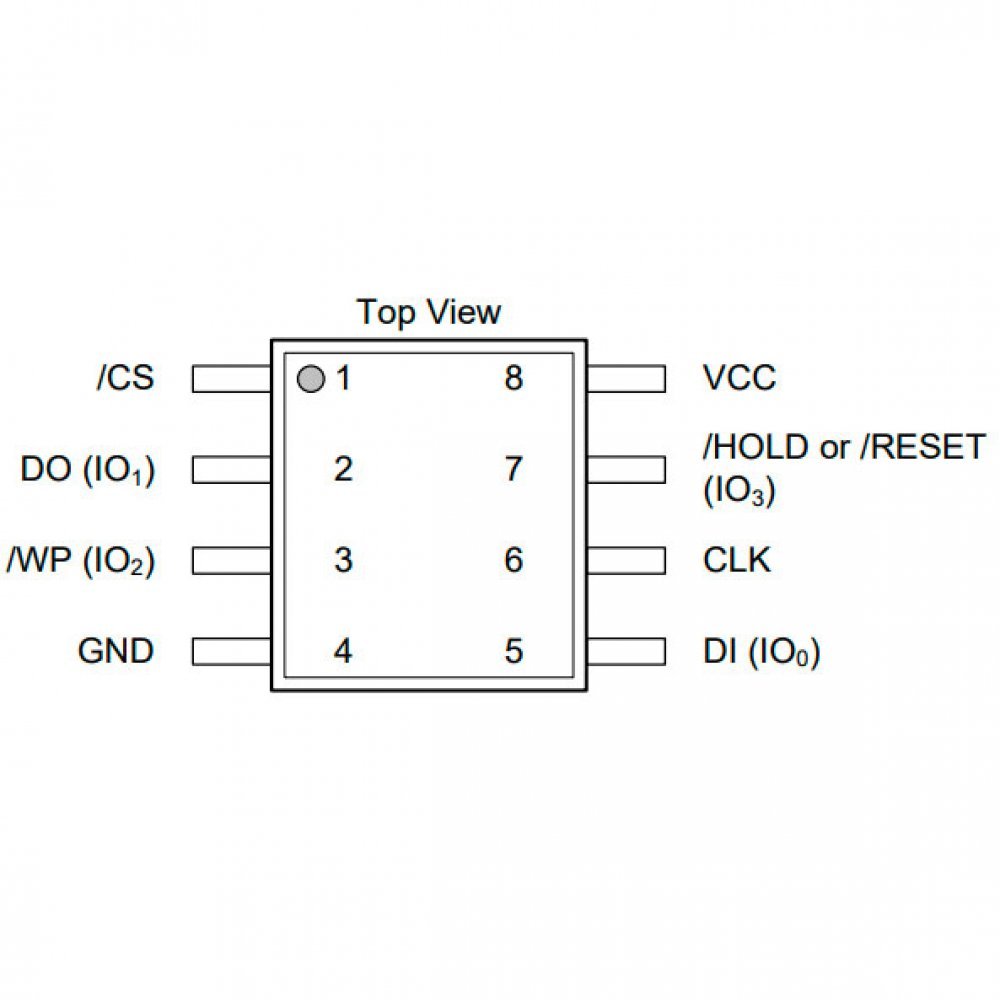

Standard SPI: CLK, /CS, DI, DO
Dual SPI: CLK, /CS, IO0, IO1
Quad SPI: CLK, /CS, IO0, IO1, IO2, IO3
Software e Hardware Reset(1)

Highest Performance Serial Flash
133MHz Single, Dual/Quad SPI clocks
266/532MHz equivalent Dual/Quad SPI
66MB/S continuous data transfer rate
Min. 100K ProgramErase cycles per sector
More than 20year data retention

Efficient Continuous Read
Continuous Read with 8/16/32/64Byte Wrap
As few as 8 clocks to address memory
Allows true XIP (execute in place) operation

Low Power, Wide Temperature Range
Single 2.7 to 3.6V supply
<1A Powerdown (typ.)
40C to 85C operating range
40C to 105C operating range

25Q128JVSQ Ci de Bios 128MBit Flash 3.3V SOIC8

KIT com 5 unidades
Novo sem uso
Original Winbond

25Q128JVSQ-KIT5 CI DE BIOS 128MBIT FLASH 3.3V SOIC8 (Kit 5 und)

Condição de 25Q128JVSQ-KIT5: novo em embalagem comercial
