High-performance and most advanced PCIe connectivity and data protection for SATA and SAS disk drives.
12-port Unified Serial PCI Express (PCIe) controller supporting RAID 0, 1, 1E, 5, 5EE, 6, 10, 50, 60, Copyback Hot Spare, and optional Snapshot Backup for mid-range to enterprise servers and workstations.

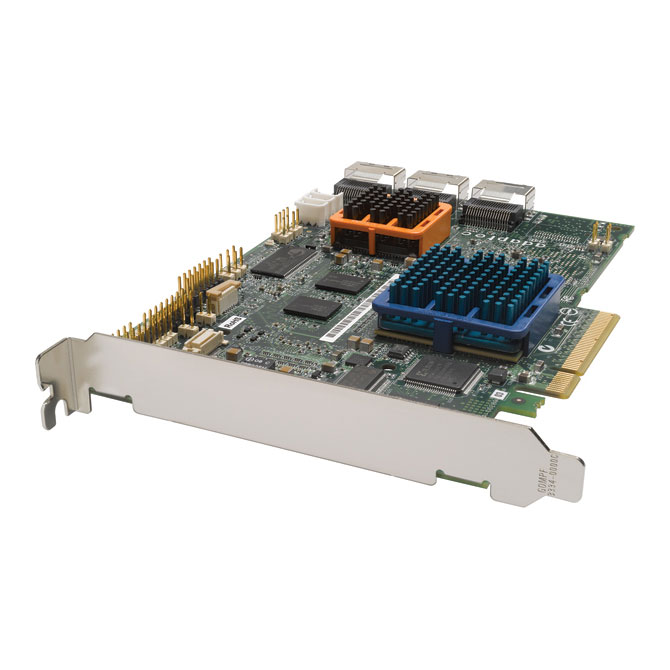

Choose an Adaptec Unified Serial controller to leverage cost-effective, high-capacity Serial ATA (SATA) disk drives or high-performance Serial Attached SCSI (SAS) drives, or both, in a single storage system. With Adaptec Unified Serial controllers, you can scale up to 60TB (using 500GB drives) and increase performance for SATA and SAS storage.Attach directly to SATA and SAS midplanes with up to 12 disk drives or increase capacity using SAS expanders. With an x8 lane, 800 MHz processing power and 128MB of memory, your large capacity solutions will maximize performance and scalability.The Adaptec RAID 31205 is a 12-port controller that supports SATA and SAS drives and next-generation PCIe connectivity. It features Adaptec RAID Code (ARC) with RAID levels 0, 1, 1E, 5, 5EE, 6, 10, 50, 60, JBOD, as well as Copyback Hot Spare and optional Snapshot Backup. The card has 128MB of DDR2 memory and a battery unit is optional. Adaptec Storage Manager provides one-view, centralized management for all Adaptec RAID controllers.
Highlights: |
| 12 ports support up to 12 SATA and SAS drives | | PCIe 8x host interface | | 3 Gb/s per port | | RAID levels 0, 1,1E, 5, 5EE, 6, 10, 50, 60, JBOD | | Copyback Hot Spare and optional Snapshot Backup | | LED header for drive activity and failure indication | | SES2 and SGPIO enclosure management | | 128MB DDR2 fixed data cache | | RoHS compliant | | Optional battery backup module |
|
Supported Operating Systems:
Microsoft Windows
Red Hat Linux
SUSE Linux
Novell NetWare
SCO OpenServer
UnixWare
Sun Solaris
FreeBSD
VMware ESX Server
For a detailed list see ASK Answer ID 15061
Key Differentiators:
Affordable Unified Serial RAID controllers support both SATA and SAS devices. Ideal for workstations, and entry to mid-range servers.
Customer Needs
Affordability and performance with an advanced feature set for customers needing storage flexibility and capacity growth.
System Environment
Intel IA32, EM64T, and AMD64
Cache Memory
128MB of DDR2 memory
RAID Levels
RAID 0, 1, 1E, 5, 5EE, 6, 10, 50, 60, JBOD
Key RAID Features
Supports up to 128 SAS or SATA devices (depending on server design)
RAID Levels 0, 1, 10, 5, 50, JBOD
Advanced Data Protection Suite
RAID Levels 1E (Striped Mirror), 5EE (Hot Space), 6
and 60 (Dual Drive Failure Protection)
Copyback Hot Spare
Snapshot Backup (optional)
Dynamic caching algorithm
Online Capacity Expansion
RAID Level Migration
Optimized Disk Utilization
Quick Initialization
Native Command Queuing (NCQ)
Hot spares global, dedicated, and pooled
Background initialization
Automatic/manual rebuild of hot spares
SAF-TE enclosure management support
Configurable stripe size
S.M.A.R.T. support
Up to 512TB array sizes
Multiple arrays and types per disk drive
Bad stripe table
Dynamic sector repair
Staggered drive spin-up
Bootable array support
Hot-plug drive support
Redundant path failover
Bus System Interface Type
8-lane PCIe
Internal Connectors
3 internal connectors (SFF-8087)
Data Transfer Rate
3 Gb/s per port
Package Contents
Adaptec RAID 31205 Controller
Quick Installation Guide (English/French/German/Italian/Spanish)
Software and documentation CDs
Cables (3): Mini SAS to SATA fanout cable w/ sideband(2247000-R)
Warranty
3 years
Management Utilities
Adaptec Storage Manager (ASM)
Java-based GUI Management Utility
Remote configuration, monitoring & notification
ASM OS Support: Windows, Linux, SCO, Solaris, NetWare
Microsoft VDS Support
SNMP, SMTP
Simultaneous remote firmware updates
ARCCONF
Command Line Interface
Adaptec BIOS Configuration Utility (ACU)
BIOS level configuration utility
Flashable BIOS support
Physical Size
4.6" H x 6.6" L (116mm x 167 mm)
Operating Temperature (excl. battery)
0°C to 40°C (without airflow)
0°C to 55°C (with airflow)
Note: with battery the temperature should not exceed 40°C.
Operating Voltage
1 amp @ 3.3V
Regulatory Certification
FCC, UL, C-tick, CE, VCC
Accessories
Snapshot Backup Key (2228200)
Adaptec Battery Module ABM-800 (2248000-R)
Mean Time Before Failure (MTBF)
650,411 hours at 40 degree C.
2252400-R Adaptec Controladora RAID SATA/SAS 12 Canais
